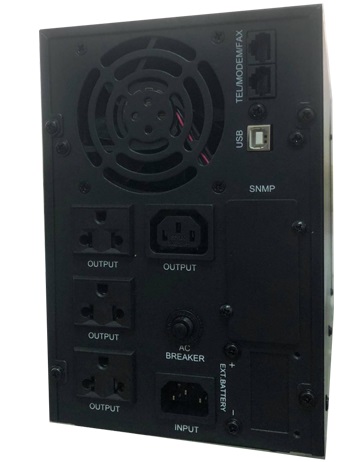

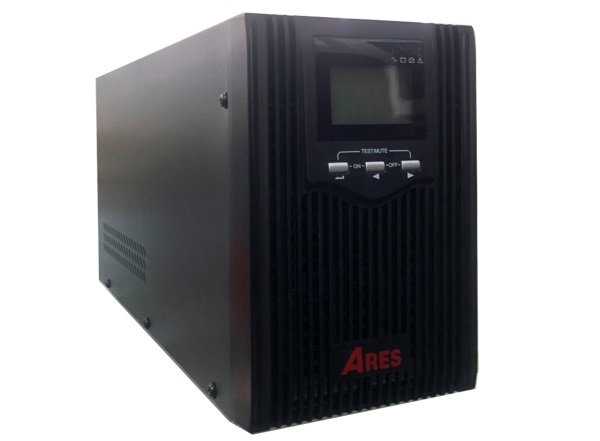

Bộ lưu điện ARES AR630 (3000VA/2400W)

Thương hiệu

UPS Ares

MODEL

AR630

Capacity

3000 VA / 2400 W

DC INPUT

Rated voltage

48 V

DC input range (default)

40 ~ 60 V

AC INPUT

AC input range (bypass mode)

0 ~ 121 / 132 / 138 / 144 Vac for 100 / 110 / 115 / 120 Vac ± 10 Vac

0 ~ 242 / 264 / 276 / 288 Vac for 200 / 220 / 230 / 240 Vac ± 10 Vac

AC input range (mains mode)

100 V: 70 ~ 130 Vac    110 V: 80 ~ 140 Vac     115 V: 85 ~ 145 Vac
120 V: 90 ~ 150 Vac    200 V: 145 ~ 260 Vac    220 V: 165 ~ 280 Vac
230 V: 175 ~ 290 Vac   240 V: 185 ~ 300 Vac

Frequency input range

50 Hz / 60 Hz (auto-sense), 50 Hz / 60 Hz ± 5% ~ 15%

Generator connection

Available (generator input power is settable)

OUTPUT

Inverter output range

100 / 110 / 115 / 120 / 200 / 220 / 230 / 240 Vac ± 5% (settable)

AC output range (bypass mode)

0 ~ 121 / 132 / 138 / 144 Vac for 100 / 110 / 115 / 120 Vac ± 10 Vac

0 ~ 242 / 264 / 276 / 288 Vac for 200 / 220 / 230 V / 240 Vac ± 10 Vac

AC output range (mains mode)

100 V: 90 ~ 110 Vac     110 V: 99 ~ 121 Vac     115 V: 103 ~126 Vac
120 V: 108 ~132 Vac    200 V: 166 ~226 Vac    220 V: 188 ~245 Vac,
230 V: 199 ~ 254 Vac    240 V: 210 ~ 264 Vac

Output frequency

50 / 60 Hz ± 0.3 Hz (settable)

Waveform

Pure sine wave

Inverter efficiency

Max. 85%

Energy saving mode

Settable (< 3% load) , enter in 80 s

No-load shutdown

Settable (< 3% load), shut down in 80 s

Transfer time

≤ 10 ms

THDV
(resistive load)

≤ 5%

Protections

Overload, short circuit (inverter), battery low voltage, battery over charge, over temperature

Overload (mains mode)

110% for 120 s, 125% for 60 s,  150% for 10 s (transfer to bypass mode)

Overload (inverter mode)

110% for 60 s, 125% for 10 s, 150% for 5 s (shut down directly)

Mute

Automatic mute in 60 s or by manual

BATTERIES

Inbuilt battery (standard model)

12 V / 9 Ah x 4

Charging current

Standard model (S): 1 A (default)

Long time model (H): 10 A (default); < 10 A, set step 1 A; ≥ 10 A, set step 5 A

Max. 25 A (H)

Equalizing charge voltage

Single battery 14.1 Vdc (default), 13.6 ~ 15 Vdc adjustable

Floating charge voltage

Single battery 13.5 Vdc (default),13.2 ~ 14.6 Vdc adjustable

Low voltage alarm point

Single battery 10.8 Vdc (default), 9.6 ~ 13 Vdc adjustable

Low voltage shutdown point

Single battery 10.2 Vdc (default), 9.6 ~ 11.5 Vdc adjustable

OTHERS

Communications

USB & RJ45 (standard), dry contacts / SNMP (optional)

Operating temperature

5℃ ~ 40℃

Operating humidity

Relative humidity ≤ 93%

Noise level

≤ 50 dB (1 m)

Tower

Dimensions (W × D × H) (mm)

 190 x 467 x 335.5 (S / H)

Packaged dimensions (W × D × H) (mm)

320 x 592 x 462  (S / H)

Net weight (kg)

28.1 (S)
28.0 (H)

Gross weight (kg)

30.2 (S)
30.0 (H)
