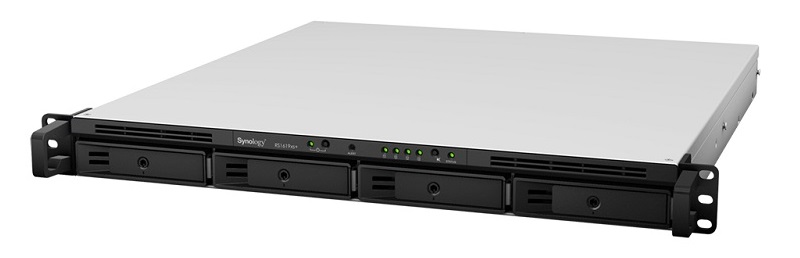

Thiết bị lưu trữ mạng NAS Synology RS1619xs+

CPU

Intel Xeon D-1527 quad-core 2.2GHz, Turbo Boost up to 2.7GHz

Hardware encryption engine

Yes (AES-NI)

Memory

8GB DDR4 ECC UDIMM (expandable up to 64 GB)

Compatible drive type

• 4 x 3.5" or 2.5" SATA SSD/HDD (drives not included)
• 2 x M.2 2280 NVMe/SATA SSD (drives not included)

Hot swappable drive

Yes

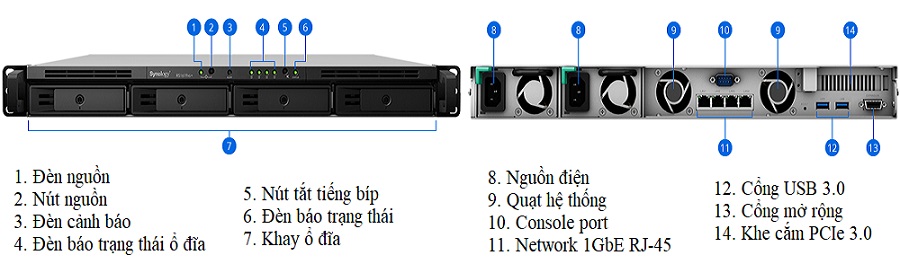

External port

• 2 x USB 3.0 port
• 1 x expansion port

Size (HxWxD)

• 44 x 430.5 x 483.6 mm
• 44 x 480 x 518.6 mm (with server ears)

Weight

8.16 kg

LAN

4 x Gigabit (RJ-45)

Wake on LAN/WAN

Yes

PCIe 3.0 slot

• 1 x 8-lane x8 slot
• 10GbE/25GbE network interface card support

Scheduled power on/off

Yes

System fan

2 (40 x 40 x 28 mm)

AC input power voltage

100V to 240V AC

Power frequency

50/60Hz, single phase

Operating temperature

5°C to 35°C (40°F to 95°F)

Storage temperature

-20°C to 60°C (-5°F to 140°F)

Relative humidity

5% to 95% RH

Maximum operating altitude

5,000 m (16,400 ft)

Networking protocol

SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN ™ , L2TP)

File system

• Internal: Btrfs, ext4
• External: Btrfs, ext4, ext3, FAT, NTFS, HFS+, exFAT

Supported RAID type

Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID F1

Storage management

• Maximum single volume size: 108TB/200TB (at least 32 GB RAM required, for RAID 5 or RAID 6 groups only)
• Maximum system snapshots: 65,536
• Maximum internal volume: 1,024

SSD cache

• Read-write cache support
• M.2 SSD support (M.2 NVMe/SATA SSD)

File sharing capability

• Maximum local user account: 16,000
• Maximum local group: 512
• Maximum shared folder: 512
• Maximum concurrent SMB/NFS/AFP/FTP connection: 2,000

Privilege

Windows Access Control List (ACL), application privilege

Directory service

Windows® AD integration: Domain users login via SMB/NFS/AFP/FTP/File Station, LDAP integration

Virtualization

VMware vSphere® 6.5, Microsoft Hyper-V® , Citrix®, OpenStack®

Security

Firewall, encryption shared folder, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, login auto block, Let's Encrypt support, HTTPS
(customizable cipher suite)

Supported client

Windows 7 onwards, Mac OS X® 10.11 onwards

Supported browser

Chrome®, Firefox®, Internet Explorer® 10 onwards, Safari® 10 onwards; Safari (iOS 10 onwards), Chrome (Android™ 6.0 onwards) on tablets

Interface Language

English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svensk, Nederlands, Русский, Polski, Magyar,
Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย,

Drive

Provide a universal portal to synchronize your files across various platforms, including Windows, macOS, Linux, Android and iOS. The built-in
universal portal allows you to access data anytime and anywhere.
• Maximum number of hosted files: 3,000,000
• Maximum number of concurrent connections for PC clients: 1,800

File Station

Virtual drive, remote folder, Windows ACL editor, compressing/extracting archived files, bandwidth control for specific users or groups,
creating sharing links, transfer logs

FTP Server

Bandwidth control for TCP connections, custom FTP passive port range, anonymous FTP, FTP SSL/TLS and SFTP protocol, boot over the
network with TFTP and PXE support, transfer logs

Presto File Server6

High-speed data transfer over WAN with exclusive SITA technology between Synology NAS and desktop

Cloud Sync

One or two-way synchronization with public cloud storage providers including Alibaba Cloud OSS, Amazon Drive, Amazon S3-compatible
storage, Backblaze B2, Baidu Cloud, Box, Dropbox, Google Cloud Storage, Google Drive, hubiC, MegaDisk, Microsoft OneDrive, OpenStack
Swift-compatible storage, Tencent COS, WebDAV servers, Yandex Disk

Universal Search

Offer global search into applications and files

iSCSI Manager

• Maximum iSCSI target: 256
• Maximum iSCSI LUN: 512
• iSCSI LUN clone/snapshot support

Virtual Machine Manager

Deploy and run various virtual machines on Synology NAS, including Windows, Linux, or Virtual DSM

Hyper Backup

Support local backup, network backup, and backup data to public clouds

Backup tools

DSM configuration backup, macOS Time Machine support, Cloud Station Backup
Shared folder sync - maximum task number: 32

Snapshot Replication

• Maximum of shared folder snapshots: 1,024
• Maximum of Replication: 64

High Availability Manager

Reduce service downtime by setting up two identical NAS into one high-availability cluster

Active Backup for G Suite

Support G Suite My Drive and Team Drive backup and restoration

Active Backup for Office 365

Support Office 365 OneDrive for Business, mail, contacts, and calendar backup and restoration

Active Backup for Business

All-in-one backup solution designed for heterogeneous business IT environment, enabling IT admins to remotely manage and monitor
protection over PC, servers and VM on one centralized console

Collaboration tools

Collaborate with instant message service Chat, online editor Office, and scheduling assistant Calendar
• Chat maximum user: 4,000
• Office maximum user: 2,900
• Calendar: support CalDAV and access via mobile devices

Note Station

Rich-text note organization and versioning, encryption, sharing, media embedding and attachments

MailPlus Server

Secure, reliable, and private mail solution with high-availability, load balancing, security and filtering design (Includes 5 free email account
licenses; additional accounts require the purchasing of additional licenses)

MailPlus

Intuitive webmail interface for MailPlus Server, customizable mail labels, filters, and user interface

Moments

Support smart AI album with facial and subject recognition, photo editing and sharing features, and iOS and Android mobile applications

Other packages

Video Station, Photo Station, Audio Station, iTunes® Server

Surveillance Station

Maximum IP camera: 75 (total of 2,250 FPS at 720p, H.264) (Including two free camera licenses; additional cameras require the purchasing of
additional licenses)

Synology Directory Server

Provide a flexible and cost-effective domain controller solution

CMS

Provide a single interface to manage and monitor multiple Synology NAS

VPN Server

Maximum connection: 40, supported VPN protocol: PPTP, OpenVPN™, L2TP/IPSec

Mail Server

Supported Mail Server Protocols: POP3, SMTP, IMAP, Support LDAP/AD account

Mail Station

Webmail interface for Mail Server to receive emails from multiple POP3 mailboxes, customizable SMTP server

Web Station

Virtual host (up to 30 websites), PHP/MariaDB®, third-party applications support

Other packages

DNS Server, RADIUS Server, Log Center

Storage Analyzer

Volume and quota usage, total size of files, volume usage and trends based on past usage, size of shared folders, large files, most recently
modified files, least recently accessed files

Antivirus Essential

Full system scan, scheduled scan, white list customization, virus definition auto update

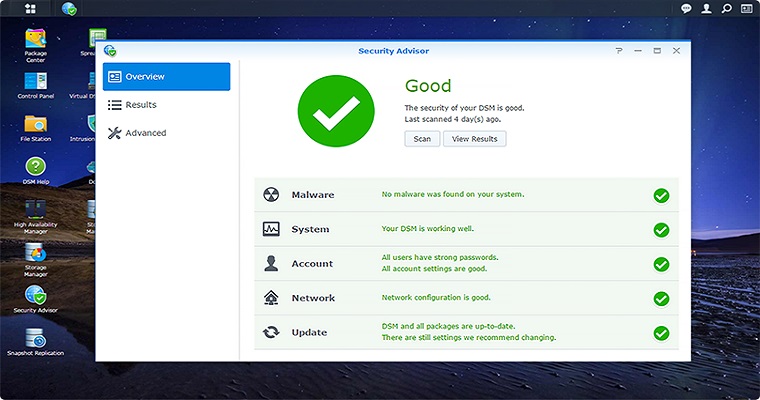

Security Advisor

Malware detection/removal, user account/password, network, system-related security scan

Other packages

Additional 3rd-party packages available on Package Center
