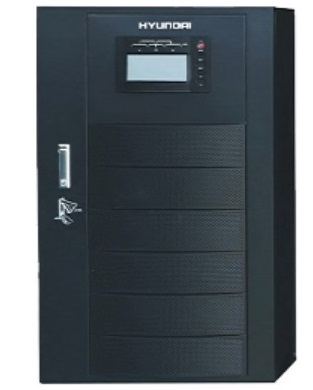

Bộ lưu điện 3 pha HYUNDAI HD-30KH3 (30KVA / 27KW)

Thương hiệu

UPS Hyundai

Model

HD-30KH3

Capacity

30KVA/27KW

Input

Rated voltage

380V/ 400V/ 415 VAC

Voltage range

205~242 VAC (load ≤ 50%);
242~305 VAC (50% < load ≤ 70%);
305~520 VAC(70% < load ≤ 100%)

Rated frequency

50/60 Hz (auto-sense)

Frequency range

40~70 Hz

Power factor

≥0.99

Total harmonic distortion (THDI)

≤3%

Bypass voltage range

Rated output voltage -40% ~ rated output voltage  +20% (settable via LCD)

Output

Voltage

380V/400V/415 VAC

Voltage regulation

±1%

Frequency

Synchronized with utility in mains mode;
Frequency conversion mode: 50Hz input and 60Hz output or 60Hz input and 50Hz output 50/60 Hz in battery mode

Waveform

Sinusoidal

Crest factor

3:1

Total harmonic distortion (THDI)

≤1% (linear load); ≤5% (non-linear load)

Transfer time

0 ms

Inverter overload capability

102%~127%: transfer to bypass in 10 mins;
127%~150%: transfer to bypass in 1 min;
>150%: transfer to bypass in 0.5s

Bypass overload capacibility

≤150%: long time running
>150%: shut down in 10s

Batteries

DC voltage

± 192V (options: ±204V/ ±216V/±228V/ ±240V)

Inbuilt battery of standard model

optional

Charging curent

1~12A (settable via LCD)

System

Efficiency

≥93%, ECO mode 98.5%

Display panel

5.7 inches LCD touch screen

Alarm

Battery mode, low battery, fans fault etc

Max. parallel numbers

4

EMI

EN62040-2

EMS

IEC61000-4-2 (ESD)
IEC61000-4-3(RS)
IEC61000-4-4(EFT)
IEC61000-4-5 (surge)

Communications

RS232/RS485/USB/dry contacts (Standard)

Supports Windows 98/2000/2003/XP/Vista/2008/7/8/10

SNMP (Optional)

Power management from SNMP manager and web browser

Others

Humidity

0~95% RH@ 0~40°C (non-condensing)

Noise level

≤ 60dB

Dimensions (WxDxH)

600 x 800 x 1360 mm

Packaged dimensions (WxDxH)

720 x 920 x 1500 mm

Net/Gross Weight (kg)
Without inbuilt battery

188/210
